Pipework

Example of an assembled standard pipework kit



Below are a list of images which can use as reference when assembling your pipework.

If you have any further questions you can call us.

PVC Pipe-01
PVC-Pipe-02
PVC-Pipe-03
PVC-Pipe-04
PVC-Pipe-05

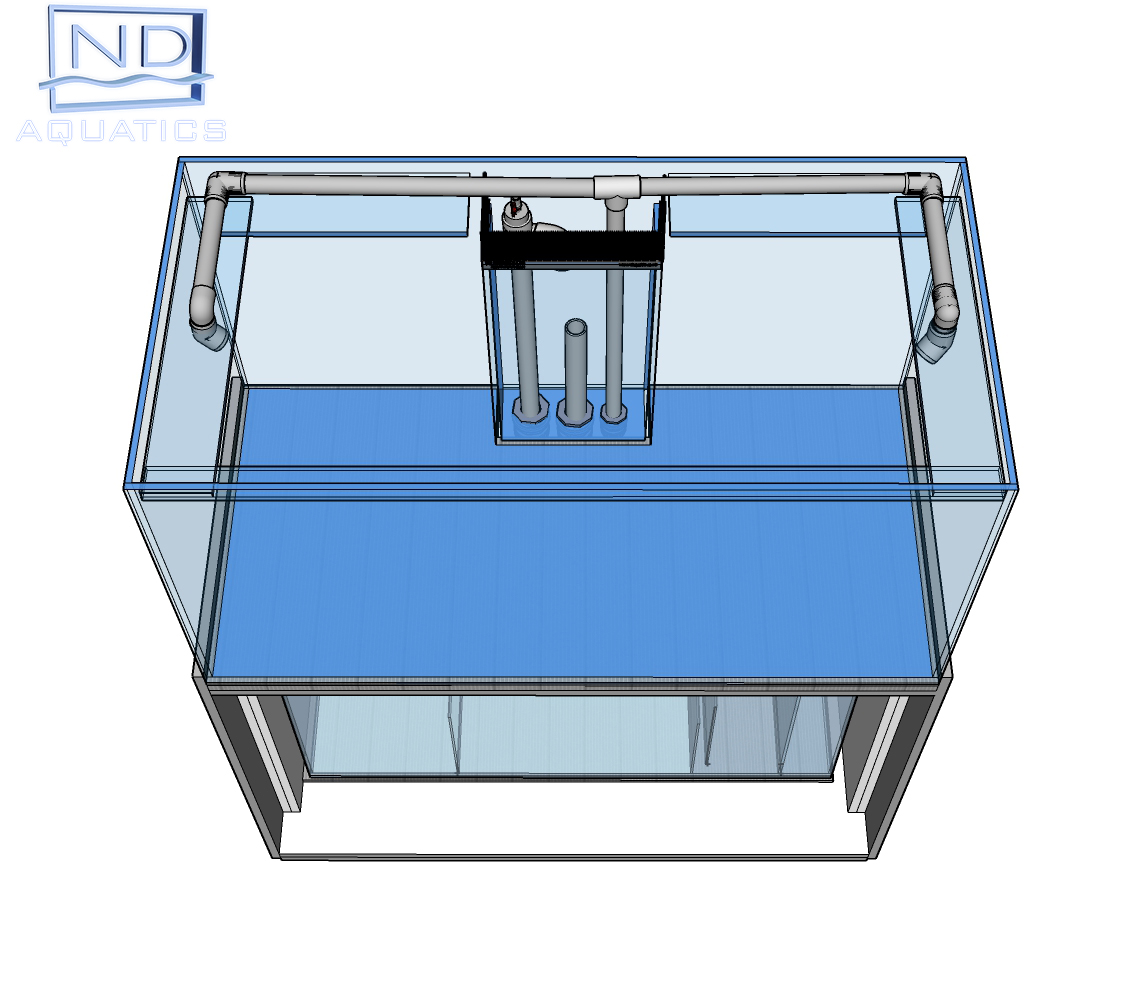

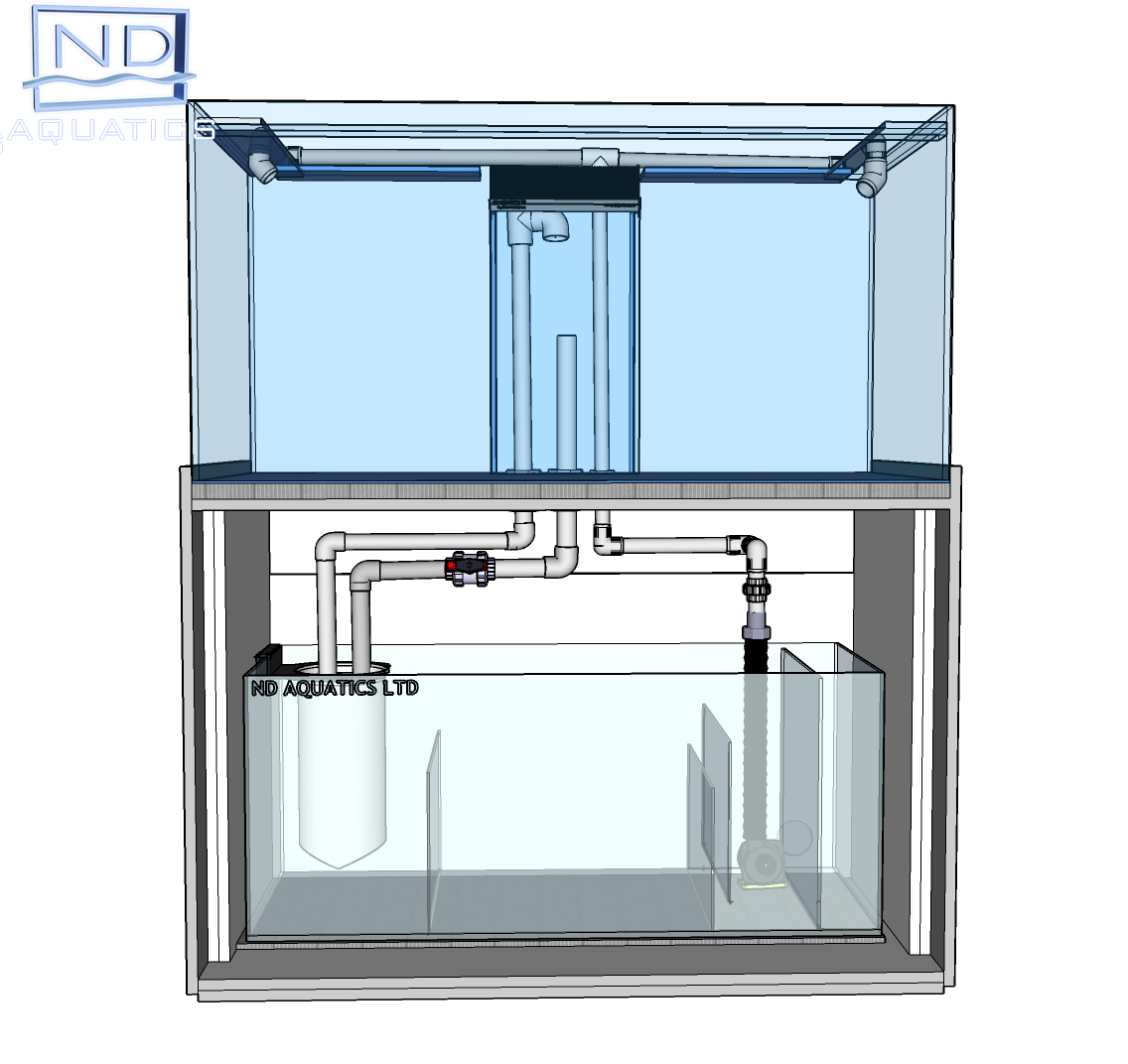

 Central Weir

ND Aquatics_Pipework_10 ND Aquatics_Pipework_20

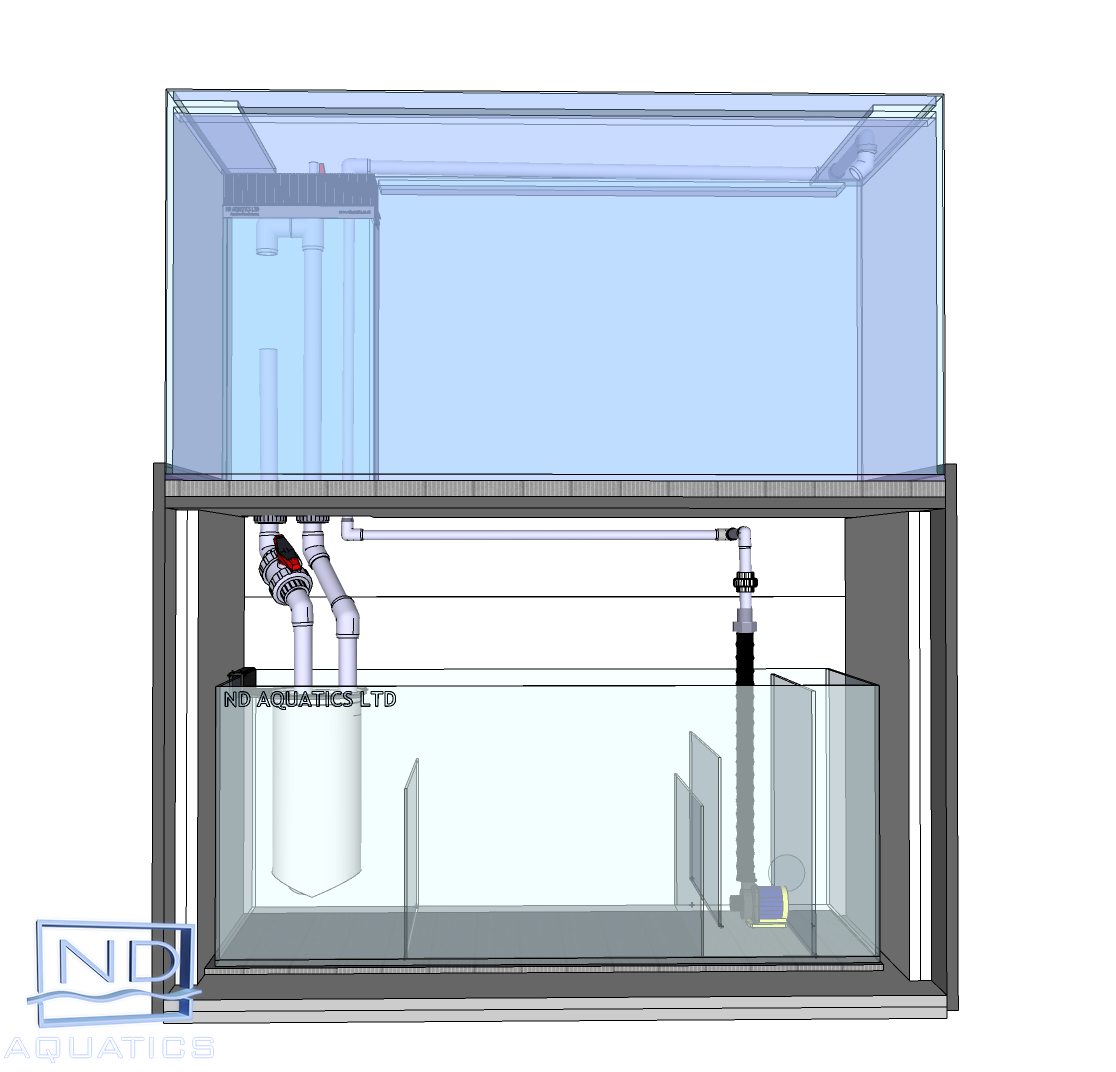

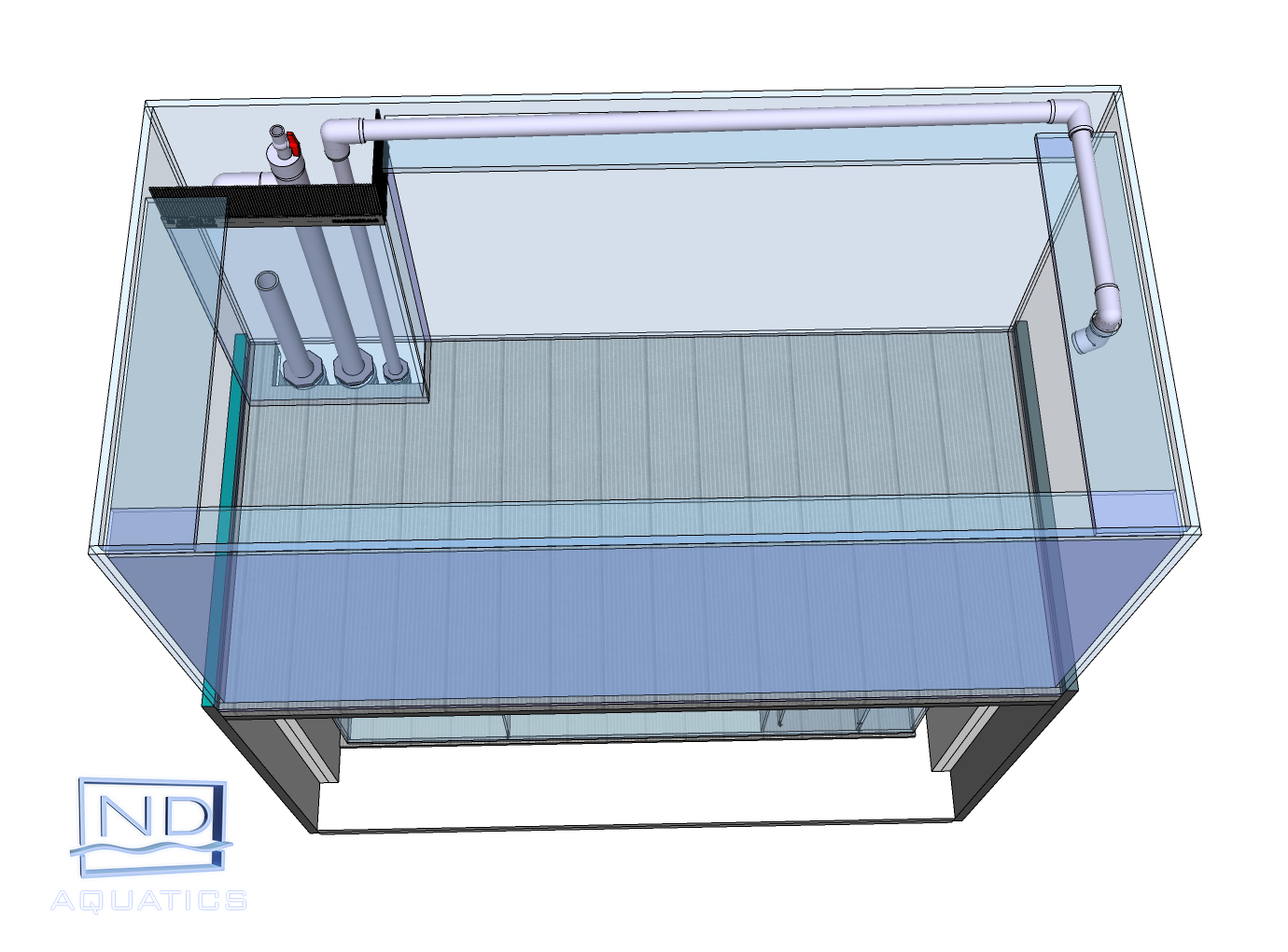

Left or Right Weir

ND Aquatics_Pipework_3.3 ND Aquatics_Pipework_3.20
Standard pipework kit Centre weir Standard pipework kit Left/Right hand weir
2 x 40mm Tank connector/Table conduit
1 x 40mm ball valve
1 x 40mm Tee
4 x 90 deg Elbow
2 x 40mm Pipe clamp
1 x Lever valve connected to 32mm End cap
1 x 25mmTank connector/Table conduit
1 x 25mm Union
7 x 90 deg 25mm elbow
1 x 25mm Tee
2 x 45 deg 25mm Elbow
1 x 25mm Adaptor
1 x 25mm Hose tail
1 x 25mm flexi hose
1 x Glue
2 x Cable ties
40mm pipe
25mm pipe1 x 32mm 90 deg Elbow		 2 x 40mm Tank connector/Table conduit
1 x 40mm ball valve
4 x 45 deg 40mm elbow
1 x 40mm Tee
1 x 90 deg Elbow
1 x Lever valve connected to 40mm End cap
1 x 25mm Tank connector/Table conduit
1 x 25mm Union
6 x 90 deg 25mm elbow
1 x 45 deg 25mm Elbow
1 x 25mm Pipe clamp
1 x 25mm Adaptor
1 x 25mm Hose tail
1 x 25mm flexi hose
1 x Glue
2 x Cable ties
3 x 40mm pipe
3 x 25mm pipe1 x 32mm 90 deg Elbow

Please contact us for more details
